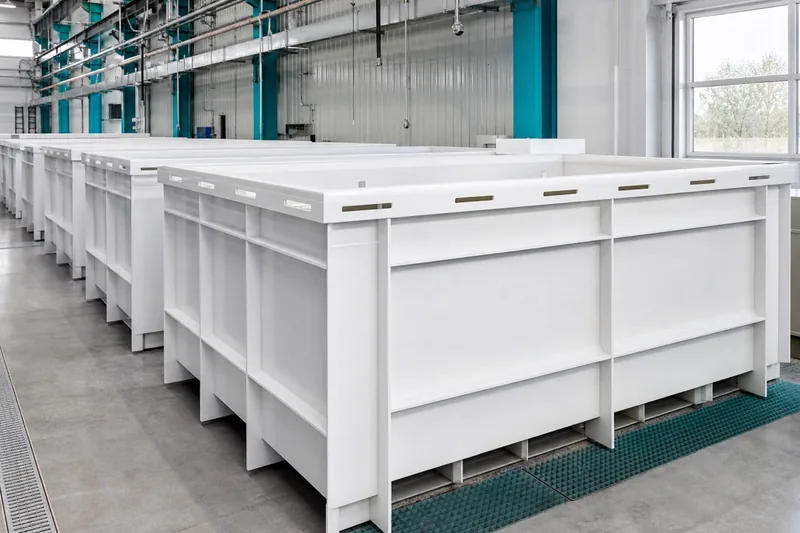

Plating & Anodizing Tanks
Process tanks with weirs, busbar supports, coils and covers — single tanks or the whole line, dimensioned to your rectifier pitch.
PP Tanks, Plating Tanks & Chemical Storage
Tanks are where corner-cutting shows first — thin walls bulge, bought-in sheet delaminates, bad welds weep acid. JHF builds process and storage tanks from PP-H sheet extruded on our own lines, CNC-cut, extrusion-welded by certified welders, reinforced to calculation and water-fill tested for 24 hours before packing.
From a single 500-liter dosing tank to complete plating line tank sets with weirs, coils and covers — built to your drawings or engineered from your process data.
- Wall thickness 8–30 mm, engineered per liquid density and tank height
- Steel-frame or welded-rib reinforcement, calculated not guessed
- PPH high-purity and PVDF construction for HF, wafer and hot-acid service
- Weirs, overflow, heating/cooling coils, covers, push-pull lips, drain valves
- 24-hour water-fill test with report and photos before shipment
Technical data
Typical Build Specification
| Volume range | 100 L – 50 m³ single tank; larger volumes as bolted/welded site-assembled sections |
| Materials | PP-H (standard) · PP-B (impact, cold rooms) · high-purity PPH (electronics/wafer) · PVDF or PVDF-lined (HF, hot concentrated acid) · conductive PP available |
| Wall thickness | 8 / 10 / 12 / 15 / 20 / 25 / 30 mm — selected by static calculation for liquid density and height |
| Reinforcement | Welded PP ribs, galvanized or epoxy-coated steel outer frame, or FRP wrap for large flat-wall tanks |
| Temperature | PP: −10…+80 °C (process dependent) · PVDF wetted parts for higher service |
| Process features | Overflow weirs, double-wall containment, heat-exchanger coils (Ti/PTFE/PP), air agitation spargers, covers and lids, level gauges, flanged nozzles to DIN/ANSI |
| Welding | Extrusion + hot-gas welding by certified welders; spark-tested seams on containment tanks |
| Testing | 24 h water-fill test standard; dimensional report; optional third-party inspection |
| Delivery | Export packing on skids; nested shipping for tank sets to save container space |
Range
What We Build Most

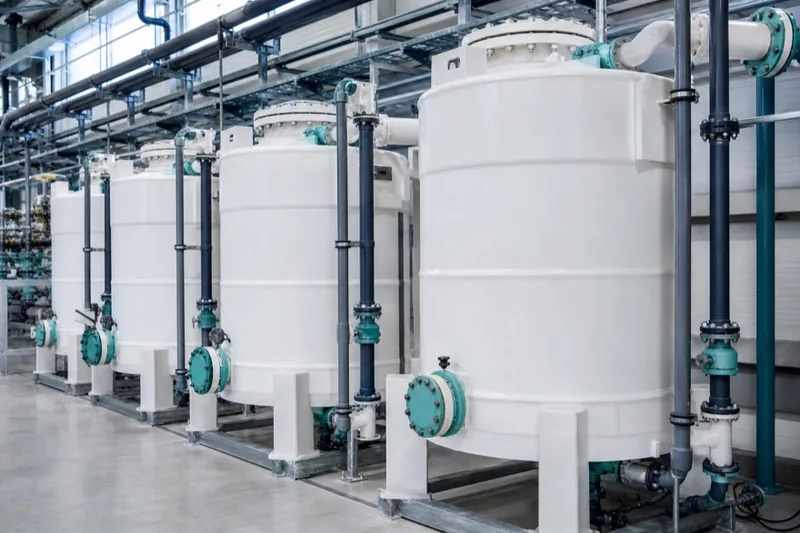

Chemical Storage Tanks
Vertical and rectangular storage for acids, alkalis and salt solutions, with containment bunds and level indication.

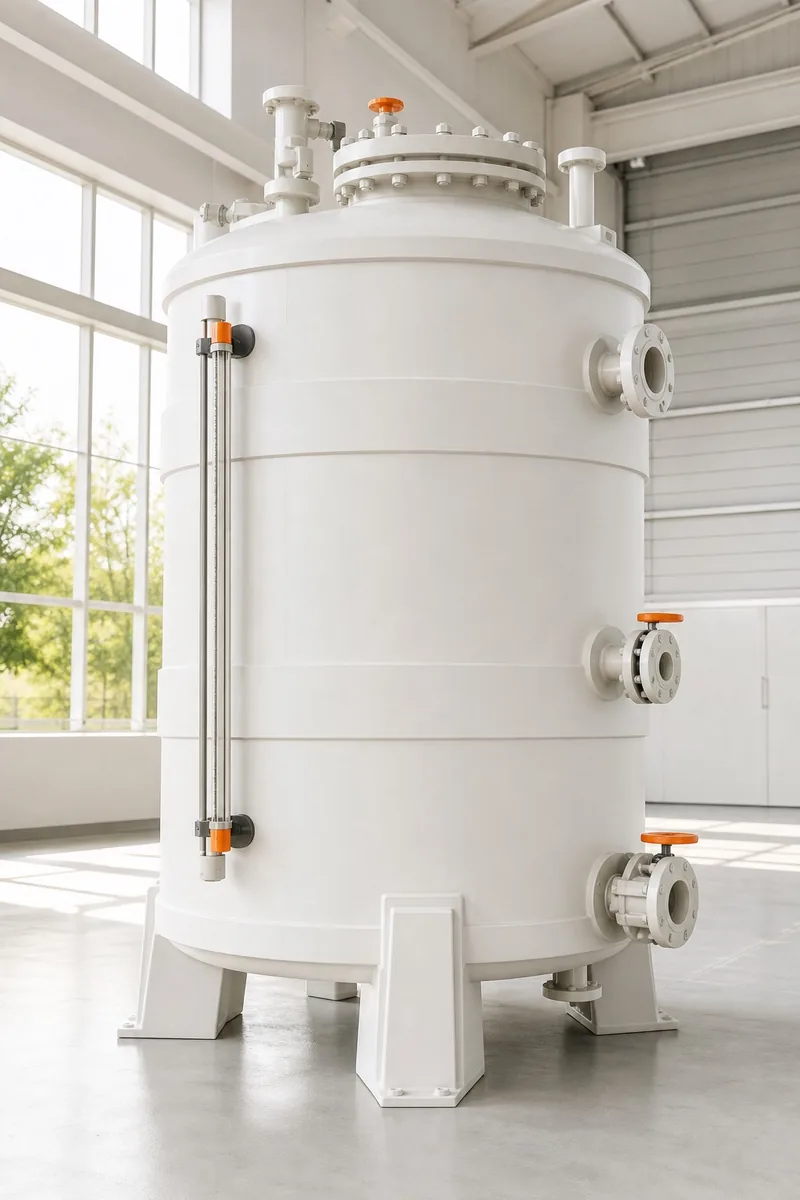

PPH / PVDF for HF & Hot Acid
High-purity PPH and PVDF builds for hydrofluoric acid, semiconductor and PV wet benches.
Dosing & Mixing Tanks
Agitated tanks with motor mounts, baffles and graduated volumes for water treatment and chemical make-up.

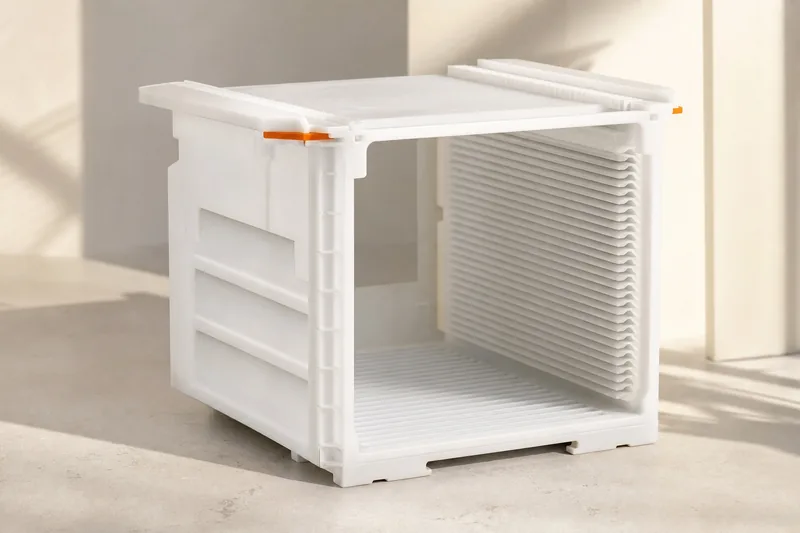

Precision PP Fabrications
Wafer carriers, lab benches, drip trays, pump covers — CNC-machined PP work beyond simple boxes.
Pickling & Pre-Treatment Lines
Long-bath pickling, degreasing and rinsing tanks with push-pull ventilation lips that pair with our scrubbers.
Engineering notes
Why Source-Factory Tanks Last Longer
- Material you can trace. The sheet comes off our extrusion line the week your tank is welded — virgin granules, consistent thickness, no regrind surprises. A material certificate accompanies each order.
- Static calculation, not habit. Wall thickness and rib spacing are calculated from liquid density, height and temperature. You receive the calculation with the drawing — useful for your own engineer's sign-off.
- Welds that hold acid for years. Certified welders, double-run extrusion seams on structural joints, spark testing available on containment-critical tanks.
- Process detail is included, not extra. Weir geometry, coil routing, sparger drilling and nozzle standards (DIN or ANSI flanges) are confirmed on the approval drawing before we cut sheet.
- Sensible logistics. Tank sets nest inside each other where possible; large tanks ship panelized with weld-on-site service or detailed jointing instructions.
Need matching corrosion-proof extraction over the tanks? See PP scrubbers and PP ducting — most plating customers order the set.
FAQ
Tank Questions
Can you copy my existing tank?
Yes — send photos with a tape measure in frame, or a simple sketch with dimensions. We redraw it for your approval, flag any weak points we see in the original, and quote both "as-is copy" and "improved" versions.
What about very large tanks that don't fit a container?
Above container dimensions we ship panelized: pre-welded floor and wall sections with numbered joints, plus welding rod and instructions. Your local plastic welder — or our flying team — completes the seams on site.
PP, PPH or PVDF — how do I choose?
PP-H covers most plating and storage chemistry to 60–80 °C. High-purity PPH is for electronics-grade cleanliness. PVDF earns its price with HF, hot concentrated acids and oxidizers. Tell us the chemistry and temperature and we will specify — including when cheaper PP is honestly enough.
Do you install heating coils and controls?
We mount titanium, PTFE or PP heat exchangers, thermowells and level switches in the factory, pressure-test the coil circuit, and leave clearly labeled tails for your electrician.
Get it priced
Send Dimensions or Drawings — Price Within 12 Hours
L × W × H, chemistry and temperature is enough for a firm quote. DWG/PDF drawings get a like-for-like price plus suggestions where we can save you money.
WhatsApp +86 186 1558 6932 · sales@jhf2017.com
Static calculation supplied24 h water-fill testDIN & ANSI flanges
