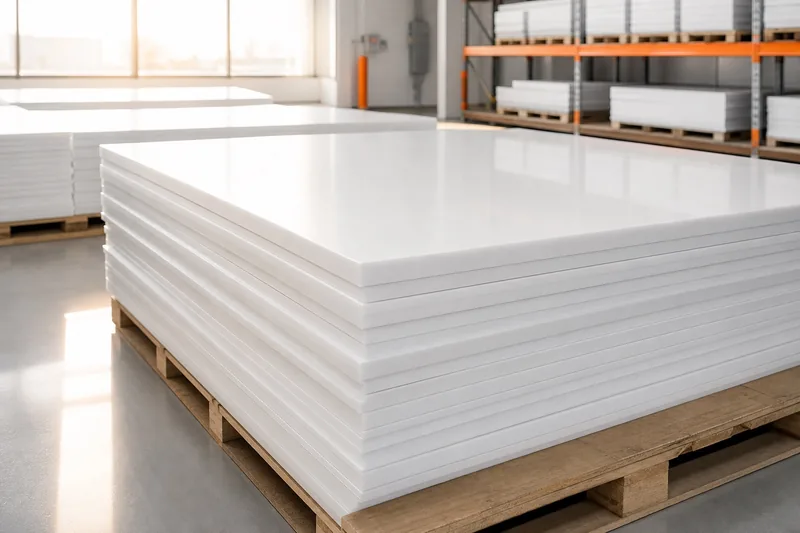

High-Purity PPH
Low-extractables sheet for wafer carriers, wet benches and pharma surfaces.
Extruded PP Sheet & Welding Rod, Factory Direct
The same sheet we trust for our own scrubbers and tanks, sold by the pallet or container. JHF extrudes PP-H, PP-B and specialty polypropylene sheet from virgin granules on our own lines in Jinan — which means traceable resin, flat sheet that welds cleanly, and manufacturer pricing for fabricators, distributors and plant maintenance teams.
Matching welding rod is drawn from the same resin batch philosophy, so your welds age like the parent material — not faster.
- Thickness 2 – 30 mm; standard sheets 1300×2000 / 1500×3000 mm and custom
- Grades: PP-H, PP-B, high-purity PPH, flame-retardant, conductive/ESD, glass-fiber, UV-stabilized, food & pharma contact
- Colors: natural, white, beige, grey, blue, green, black — custom on volume
- Welding rod 3/4/5 mm round and triangular, color-matched
- Cut-to-size, CNC routing, drilling, bending and welded pre-fabrication
Technical data
Sheet Program
| Thickness | 2, 3, 4, 5, 6, 8, 10, 12, 15, 18, 20, 25, 30 mm (others on request) |
| Standard formats | 1300 × 2000 mm · 1500 × 3000 mm · cut-to-size; rolls for thin gauges |
| Density / tolerance | 0.91 g/cm³; thickness tolerance per GB/DIN extrusion standards, flatness suitable for machine welding |
| Grades | PP-H homopolymer (chemical tanks, scrubbers) · PP-B block copolymer (impact, low temperature) · high-purity PPH (electronics, wafer) · flame-retardant V-0/V-2 · conductive & ESD · glass-fiber reinforced · UV-stabilized outdoor · food/pharma contact grades |
| Service temperature | −10…+90 °C short-term, material-dependent; datasheets per grade supplied |
| Welding rod | Ø3 / Ø4 / Ø5 mm round, 5.5×3.5 triangular; PP-H, PP-B, PPH and flame-retardant matches; 5 kg coils |
| Fabrication service | CNC cutting and routing, drilling, hot bending, edge prep (V/X bevel), welded sub-assemblies to drawing |
| Packing & MOQ | Film-wrapped pallets, seaworthy; from one pallet of one thickness — mixed-grade containers welcome |
| Documents | Material certificate, datasheet, and sample pieces before container orders |
Grades
Specialty Sheets We Extrude

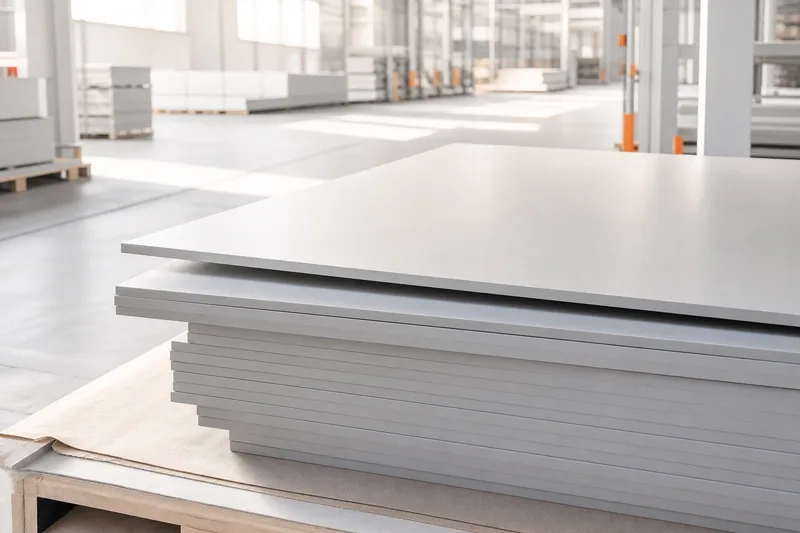

Flame-Retardant
V-0/V-2 grades for duct, enclosures and fire-conscious plants.

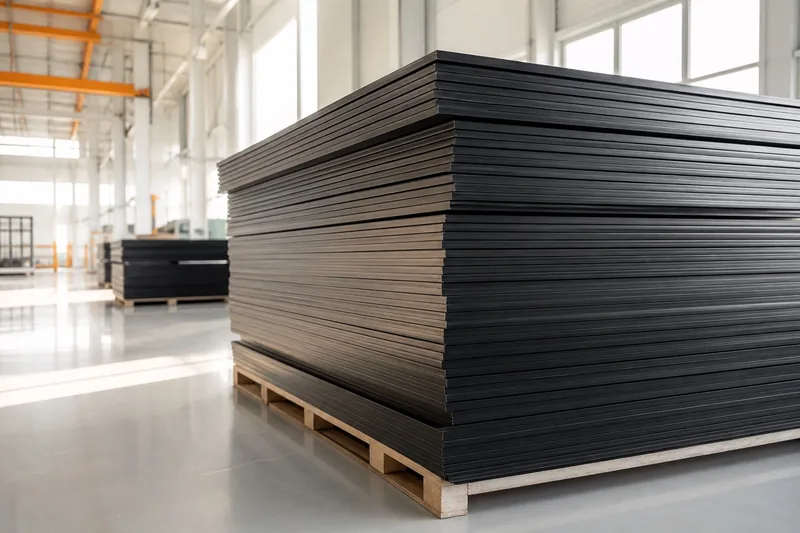

Conductive / ESD
Surface resistance controlled for electronics and solvent-exposed areas.

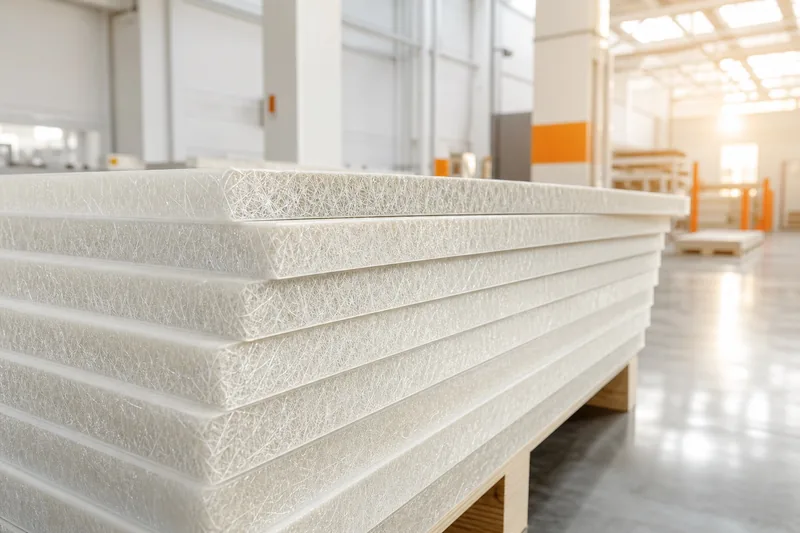

Glass-Fiber Reinforced
Higher stiffness and creep resistance for structural parts and large tanks.

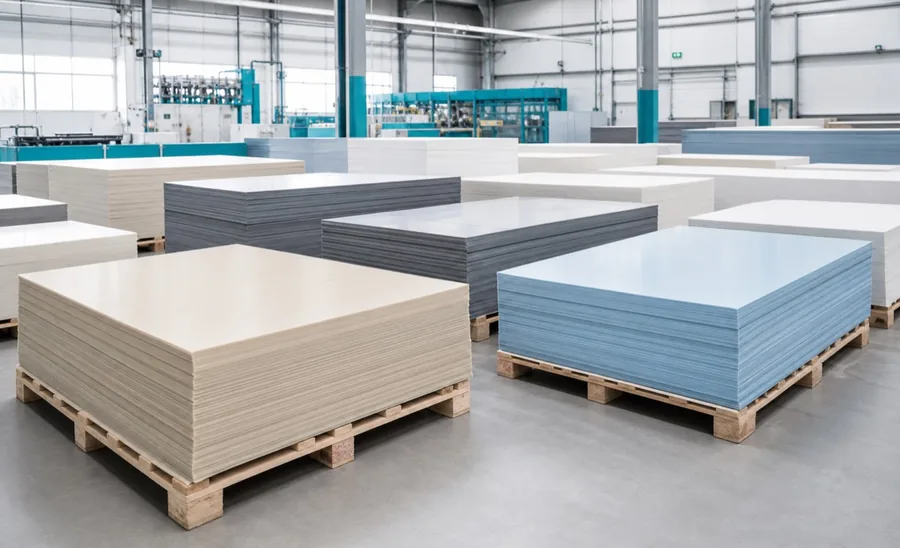

Color Program
Natural, white, beige, grey, blue, green, black from stock tooling; custom colors on volume orders.

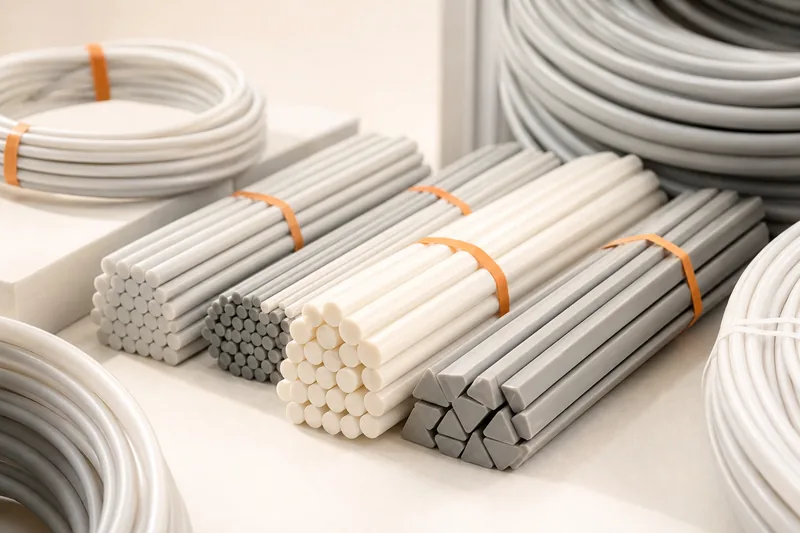

Welding Rod
Round and triangular profiles, color-matched to sheet, drawn for consistent feed in extrusion welders.

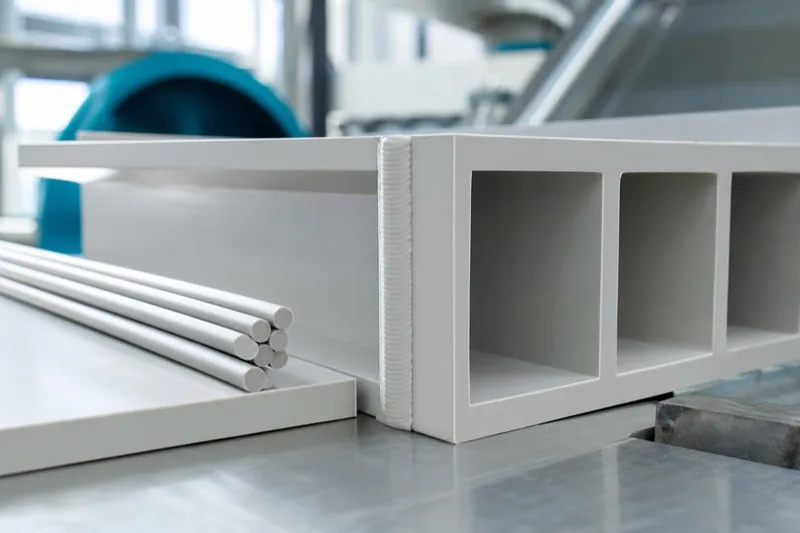

Cut & Fab Service
Send a cut list or drawing — receive labeled, edge-prepped, ready-to-weld kits instead of raw sheets.
For buyers
Notes for Distributors and Fabricators
- Manufacturer, not re-seller. Your container loads directly under our extrusion lines. Ask for the loading video — you will see your labels going on.
- Weldability is the real spec. Virgin resin and controlled cooling mean sheets stay flat under the welding gun and rod fuses without contamination lines. Request free sample offcuts and test-weld before committing.
- Mixed containers welcome. Combine thicknesses, grades, rod and even fittings or valves in one 20' or 40' — useful for distributors building a range.
- Private label available. Neutral or your-brand film printing and pallet cards on volume programs.
FAQ
Sheet Supply Questions
What is the minimum order and lead time?
One pallet for stock thickness/colors, shipping within about a week; full containers of standard grades typically produce and load within 2–3 weeks depending on the mix.
Can I get samples before ordering a container?
Yes — A4-size samples of the grades you shortlist go out by courier, free for serious inquiries; we can also weld a demo joint and send the piece.
Is your sheet 100% virgin material?
Standard program is virgin granules with material certificate. If your application tolerates it, we can quote an economy line separately and it is always labeled as such — we never mix silently.
Do you match DIN 16972 / EN standards documentation?
We supply datasheets with mechanical and thermal values mapped against common DIN/EN reference properties so your engineers can compare directly with European sheet.
Get it priced
Send Thickness, Grade and Quantity — Same-Day Price
Tell us thicknesses, grade, color and destination port. You receive per-sheet and per-container pricing with the loading plan.
WhatsApp +86 186 1558 6932 · sales@jhf2017.com
Free samples for serious buyersMixed containers welcomePrivate label on volume
